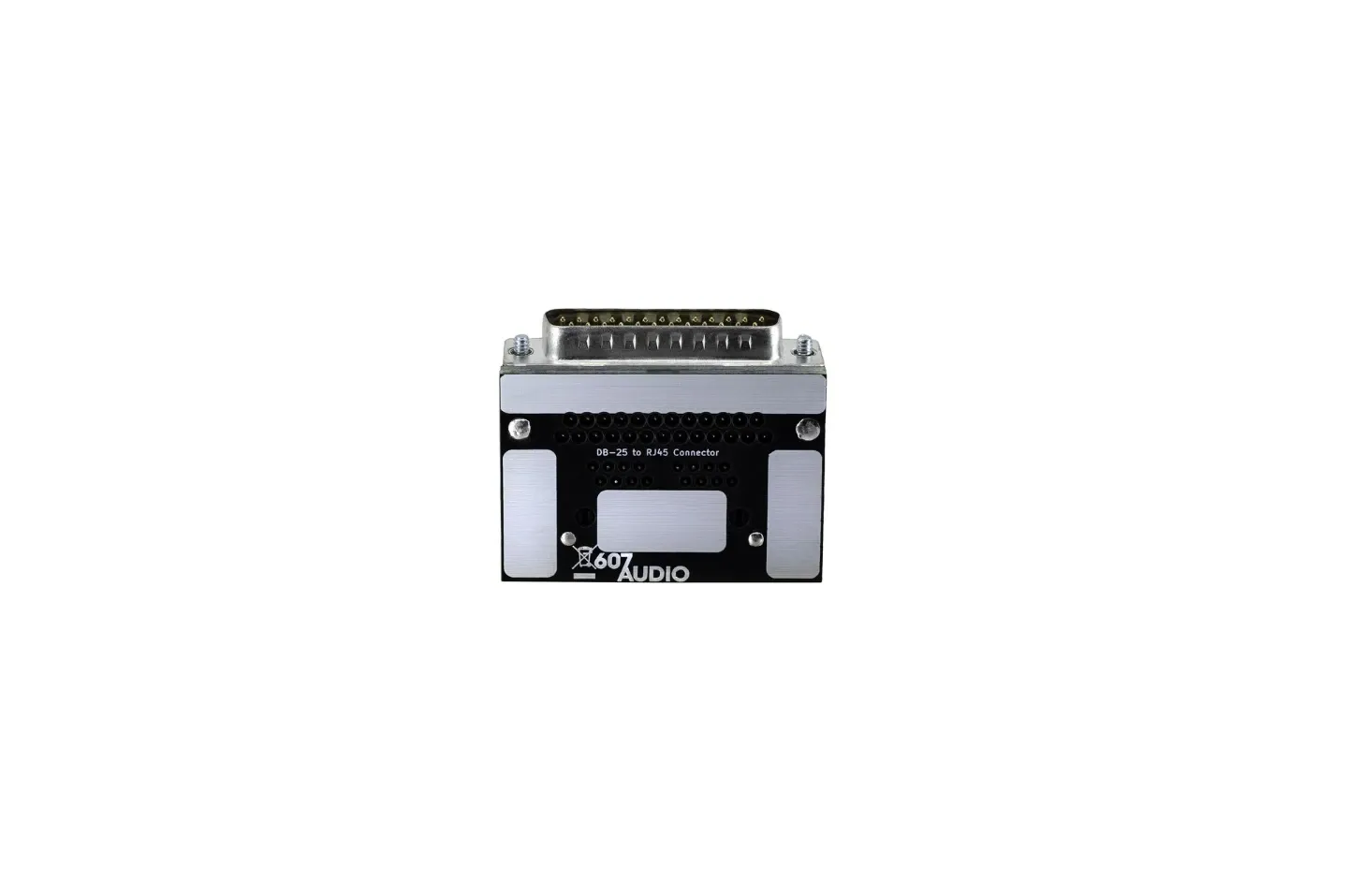

DB-25 to CAT5 Adapter

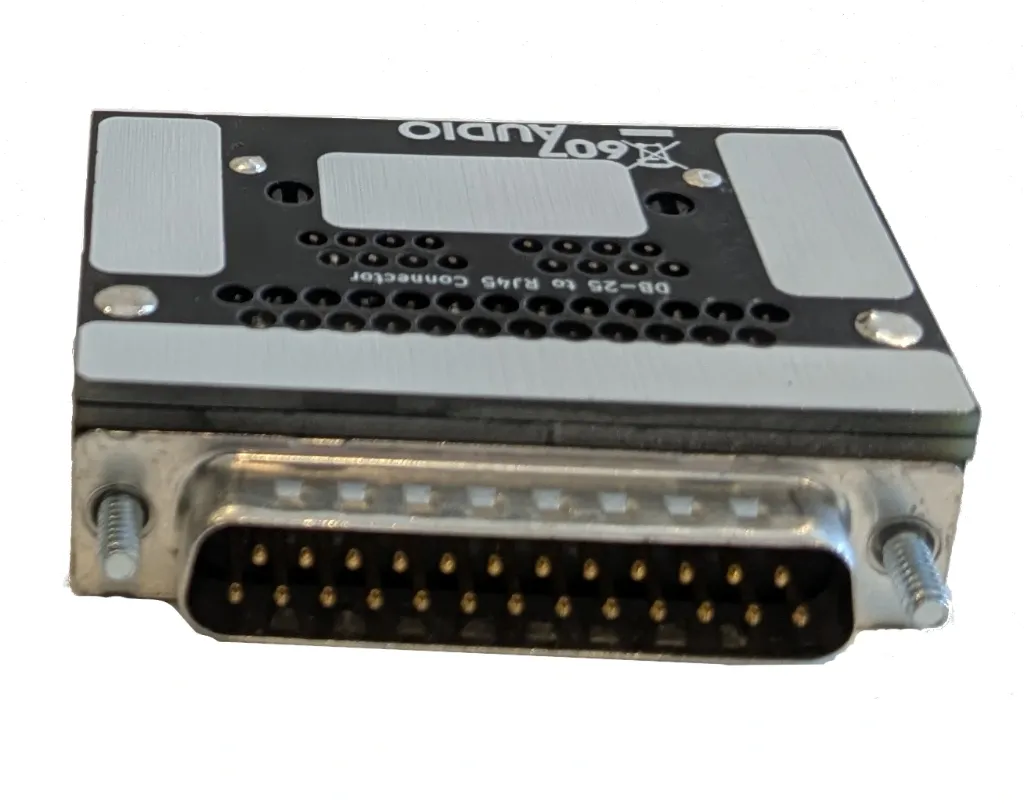

A cost effective way to connect DB-25 Connector equiped devices together using Category 5/6 networking cables.  Designed to be used with both shielded and unshielded cable. The back of each connector comes with a scribble strip for labelling.  The Adapter features 2 RJ45 connectors, and DB-25 connector which have gold plated pins for extended life.  The DB25 connectors are fitted with phillips screws.

AES-72-Type 4E Pinout.  When using a T568B cable, the pairs will be:
Orange - Channel 1
Blue - Channel 2
Green - Channel 3
Brown - Channel 4
Solid wire hot, white/solid wire cold.

PLEASE NOTE: these are not compatible with some brands of audio over CAT as they did not follow an AES Standard for Pinout.
